JY Digital Megohmmeter Analog Megohm Meter DC Megger Meter Insulation Resistance Tester
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | JY |
| Minimum Order Quantity | 1 set Insulation Resistance Tester |
| Price | USD1.0 / set Insulation Resistance Tester |

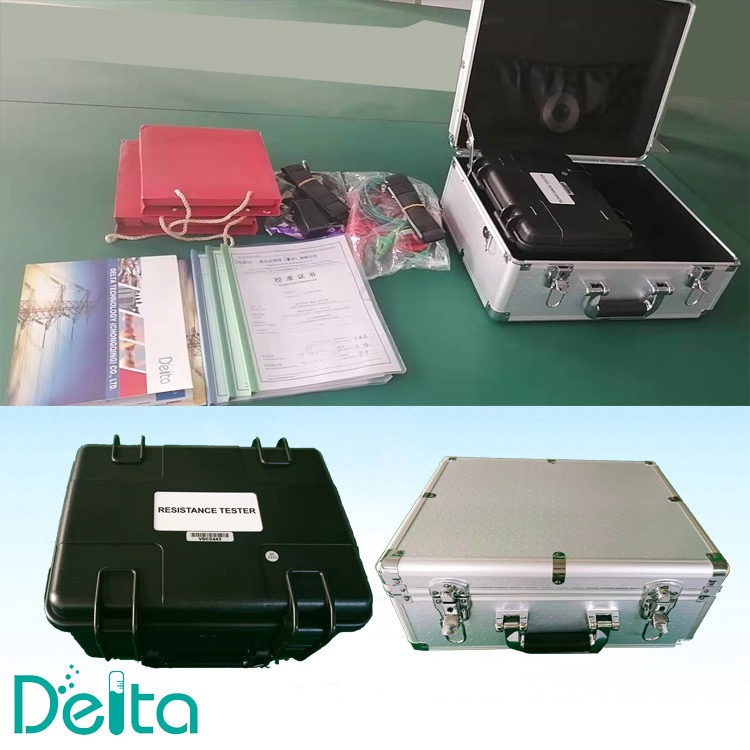

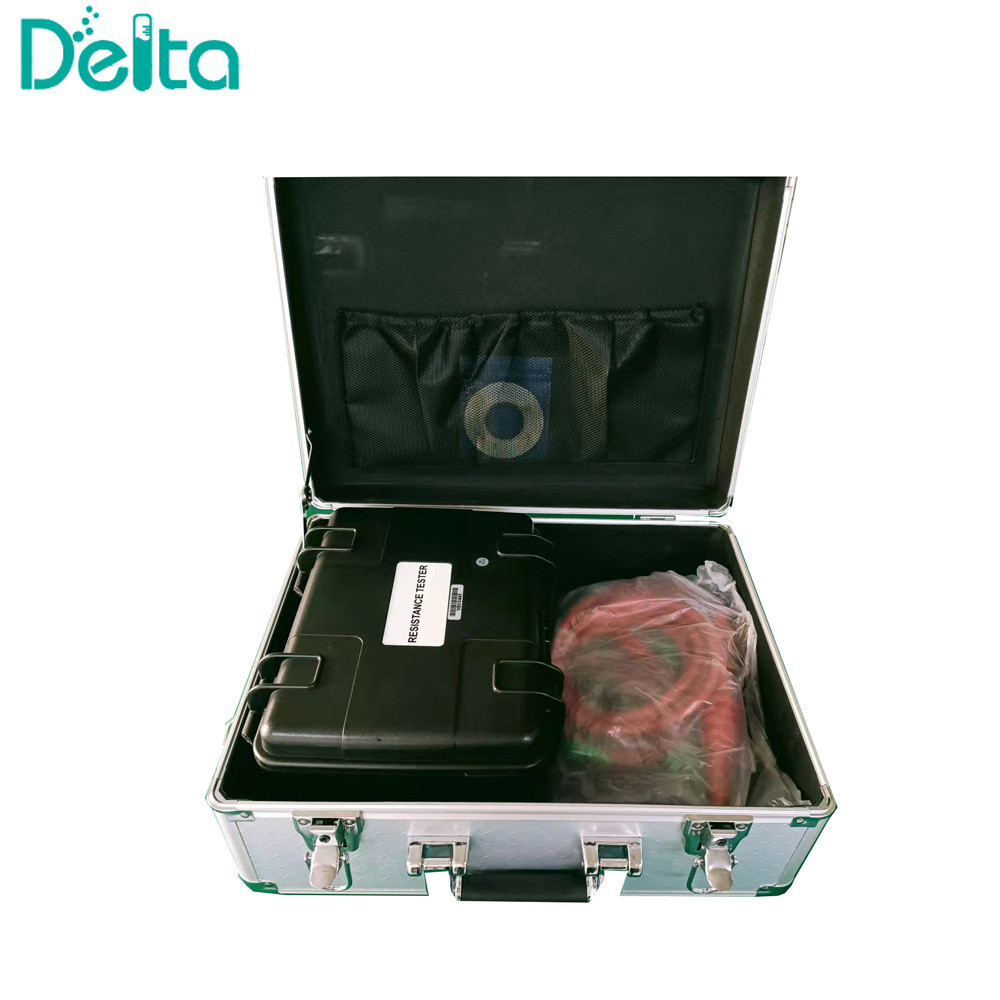

| Packaging Details | Insulation Resistance Tester is packed in one plywood case. |
| Delivery Time | Within 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets Insulation Resistance Tester / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Digital Megohmmeter Analog Megohm Meter DC Megger Meter Insulation Resistance Tester | Functions | Insulation Resistance, Voltage, DC Current Test |
|---|---|---|---|
| Application Field | Electrical Industry | Output Voltage | 100V, 500V, 1000V, 2500V, 5kv, 10kv, 15kv |
| Insulation Resistance Range | 0.01momega - 50t Omega | Capacitance Test | 10NF - 50UF |
| Display | 108mm*65mm 4-Digit Large LCD Display | Safety Regulations It Comply With | IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(I |
| Dimension | 240mm(L)*188mm(W)*85mm(H) | Weight | 2750g (with Battery) |
| Data Storage | 500groups | Powery Supply | 12V Chargable Battery |
| Trade Term | EXW, Fob, DDU, CNF, CIF, Etc. | Delivery Lead Time | 10 Days |
| Shipping Method | By Express Or By Air |
Product Description

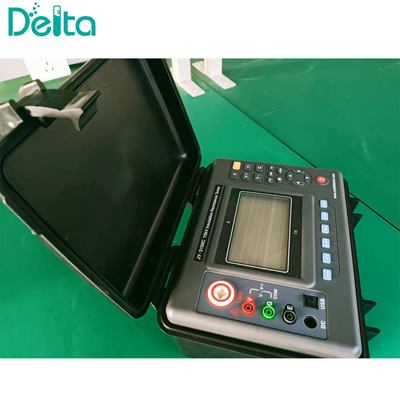

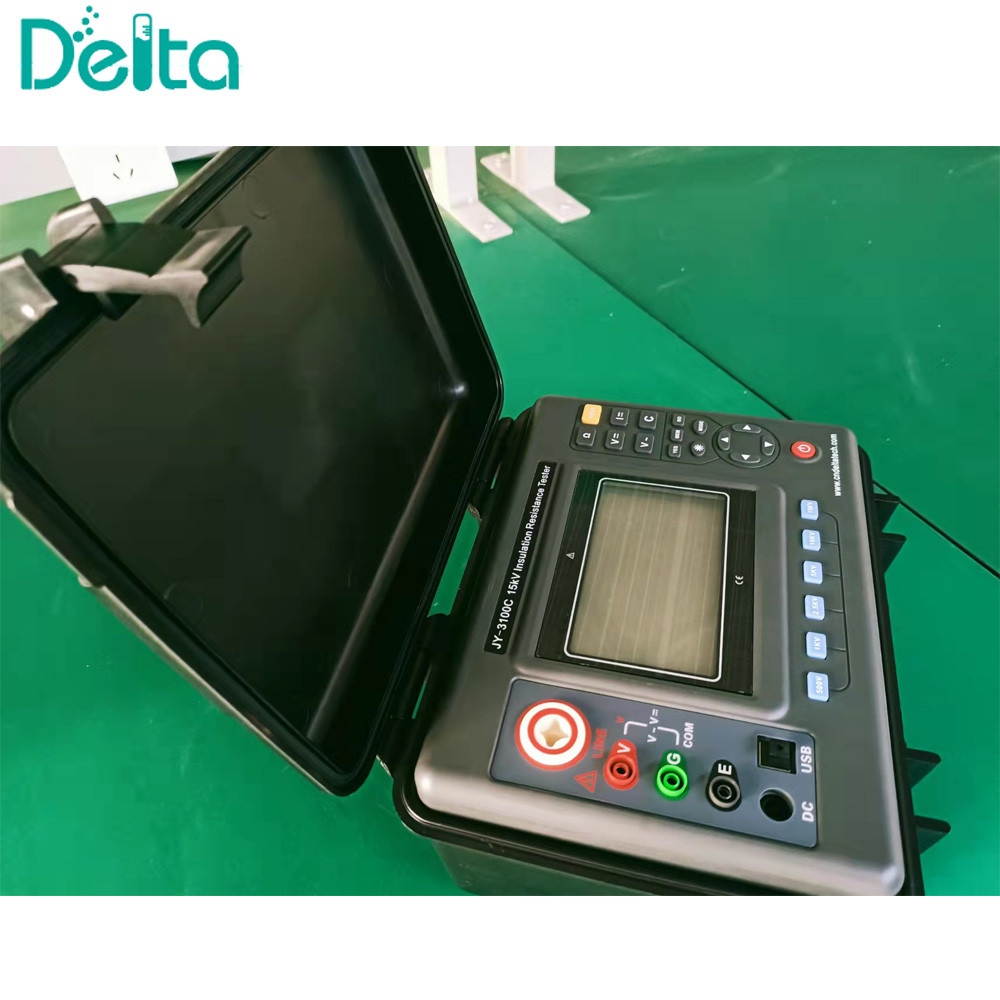

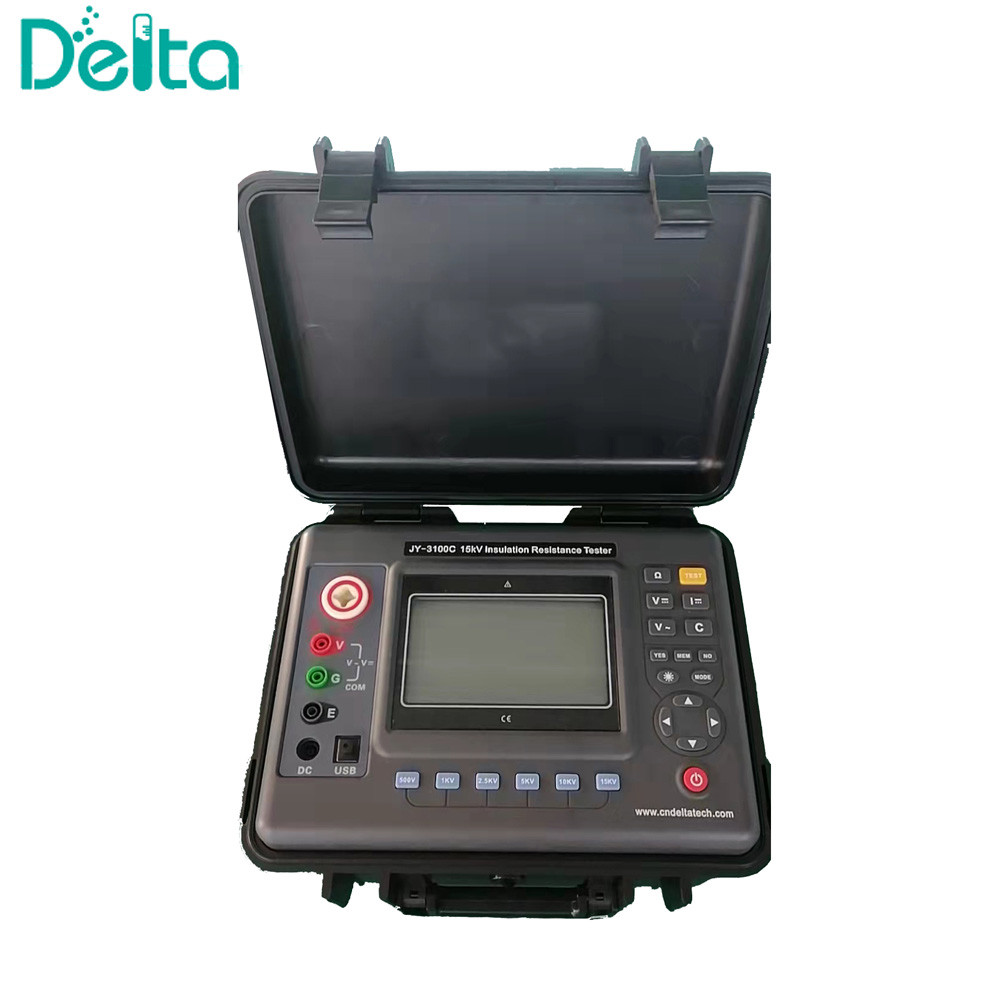

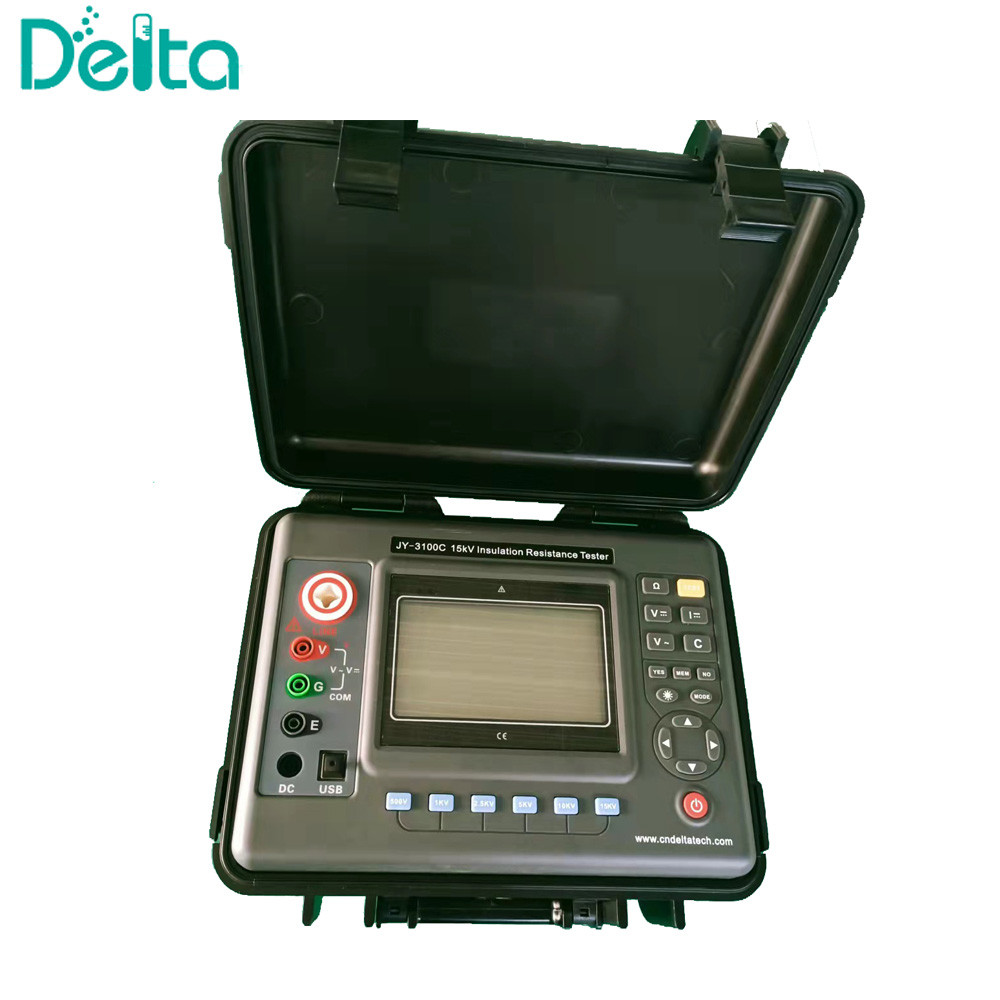

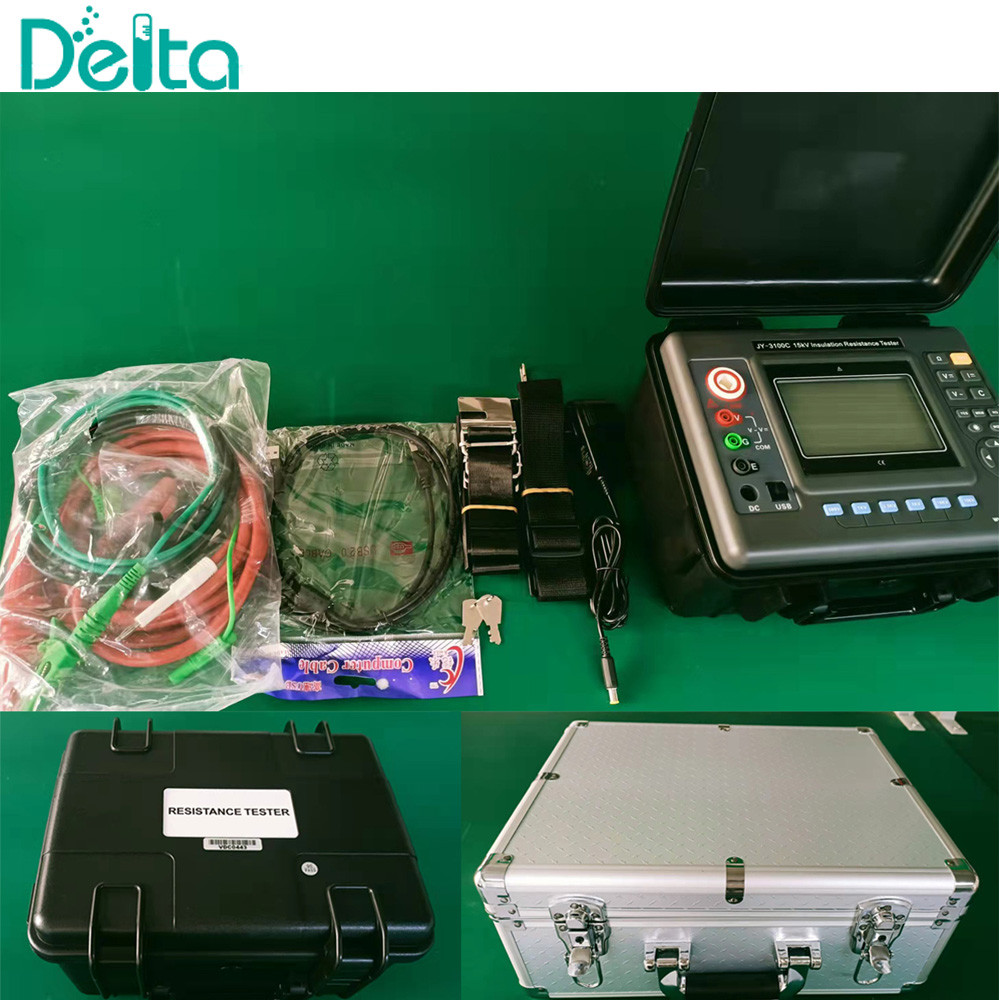

JY Digital Megohmmeter Analog Megohm Meter DC Megger Meter Insulation Resistance Tester
Introduction:
- The insulation resistance tester also named megohmmeter, high-voltage insulation resistance tester, etc.
- It is suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment. At the same time, it can output a variety of different voltage levels with the step-by-step voltage adjustment function (for example, the 15KV model can generate 12KV level, which is more widely used).
- It also has the functions of measuring DC voltage, AC voltage, absorption ratio and polarization index.
- It consists of medium and large scale integrated circuits. It has large output power and many output voltage levels (there are 6 voltage levels).

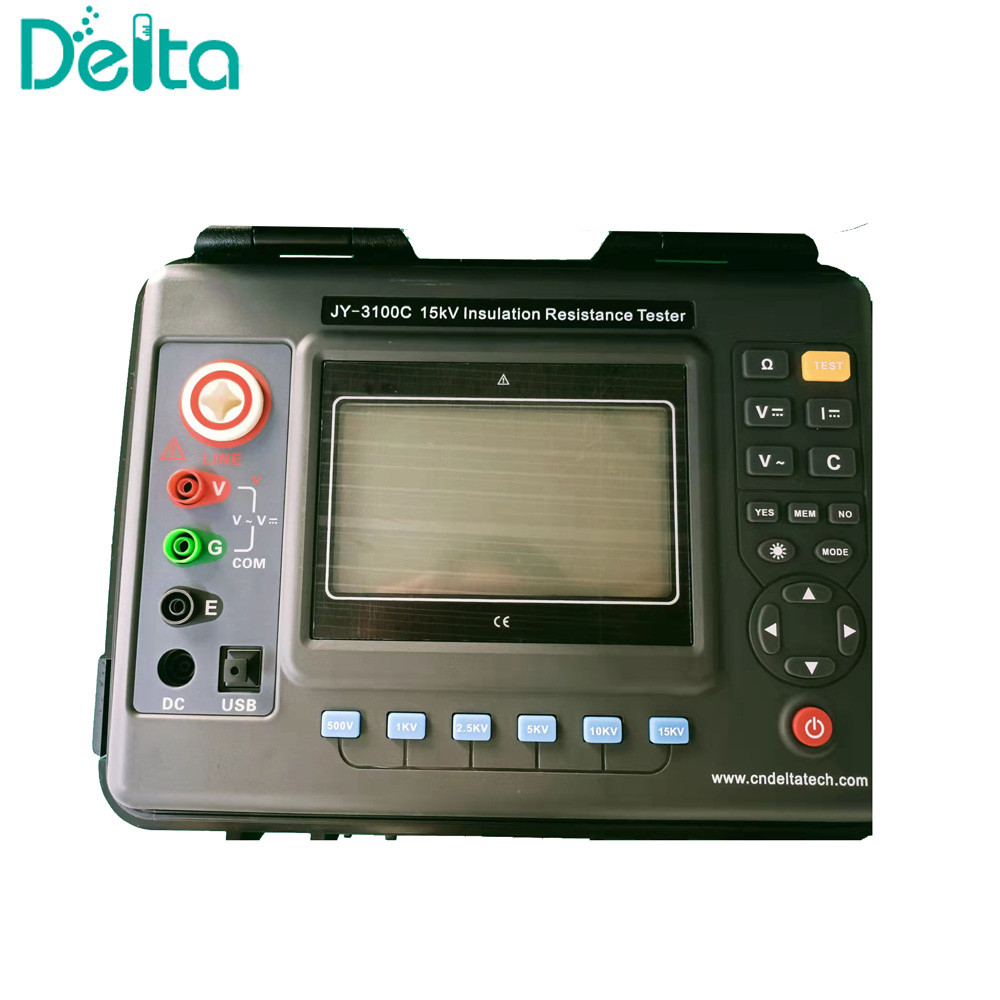

- The instrument has a large LCD screen with gray and white backlight display, data storage, data access, alarm, automatic shutdown and other functions.
- The whole machine is beautiful, with high resolution, convenient operation, convenient carrying, accurate, reliable, stable performance and strong anti-interference ability. And it has a shock-proof, dust-proof and moisture-proof structure.
- It is a common and indispensable instrument for telecommunications, electricity, meteorology, computer rooms, oil fields, electromechanical installation and maintenance, and industrial enterprises that use electricity as industrial power or energy.
Main Parameters:
| DC voltage range | 0~1000V | |
| AC voltage range | 0~750V | |
| DC Current | 0.1nF~6mA | |
| Capacitance | 10nF~50uF | |
| Output short circuit current | ≥6mA | |
| Measurement of absorption ratio and polarization index | Yes | |
| Power supply | 12V chargable battery | |
| Backlight | Controllable gray and white screen backlight, suitable for use in dark places | |
| Display | 4-digit large LCD display, gray and white screen backlight | |
| LCD screen | 108mm×65mm | |
| Dimension | 240mm(L)*188mm(W)*85mm(H) | |
| Weight | 2750g (with battery) | |
| USB function | With USB interface, software monitoring, storage data can be uploaded to the computer, save and print | |

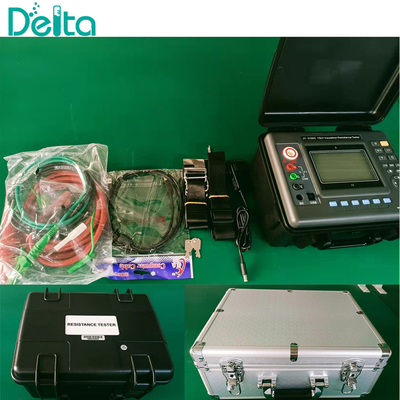

| Test cable | High voltage rod 3 meters (red), high voltage cable black 1.5 meters, green 1.5 meters. | |
| Data storage | 500groups,when flashing "FULL" symbol, it indicates the storage is full | |
| Data review function | "MR" symbol | |
| Over-range display function | ">" symbol | |
| Alarming | It will alarm when the resistance is low and voltage is high. The alarm value needs to be set. | |
| Power consumption | Standby: 30mA Max (backlight off); Turn on the backlight: 42mA Max,m; Measurement: 200mA Max (backlight off). |
|
| Automatic turn off | No operation in 15min | |
| Insulation resistance | ≥50MΩ (Between measurement line and enclosure) | |
| Withstand voltage | AC3kV/50Hz 1min | |
| Working environment | -10ºC~+50ºC<85%RH | |
| Storage environment | -15ºC~+55ºC<90%RH | |
| Safety regulations it comply with | IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54), etc. | |
